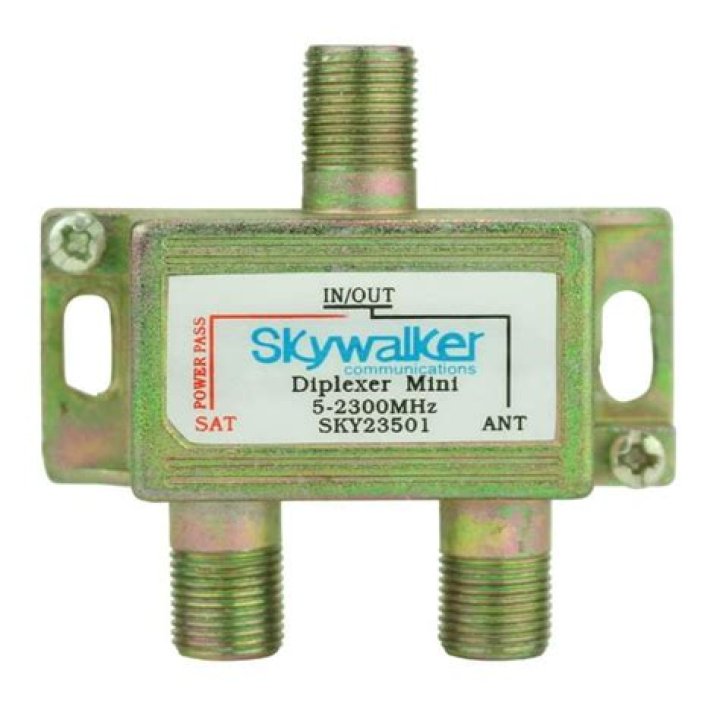

Can you use a diplexer with DirecTv?
Dedicated DIYers with a love for antenna TV want to use a single wire to bring the antenna signal into the house with the satellite signal. …
What splitter does DirecTv use?
DirecTv MSPLIT4R1-03 Approved WNC 4-Way Wide Band SWM Splitter.
Can you use a diplexer with cable?
Common uses A diplexer allows two different devices to share a common communications channel. Typically, the channel is a long coaxial cable, and a diplexer is often used at both ends of the coaxial cable. The plan is feasible if the two devices operate on different frequencies.
Why do I need a diplexer?
A diplexer is a passive (RF) filter component with three ports, which enables the sharing of a common antenna between two distinct frequency bands. This technology allows transmitters operating on different frequencies to use the same antenna and each band may both transmit and/or receive.
Do I need a special splitter for DirecTV?
First of all in most cases you will need a splitter unless you are using a legacy (non-SWM) dish. A SWM dish needs a power supply and so you would need one output for the power supply and one for the receiver. The only possibility for avoiding a splitter would be an HR54 DVR which can supply power to the dish.
How many TVs can be on DirecTV?
DIRECTV STREAM. You can stream DIRECTV STREAM on up to 20 compatible devices connected to your home network at the same time. And, use up to three of those streams on the go.
Is a splitter the same as a diplexer?
The difference is that a splitter takes in one signal and makes two out, while a diplexer or combiner takes in two signals and makes one out. Splitters are commonly used for adding a second television to an existing cable. With a satellite or cable system, a splitter could be used to add TV to a separate room.
What is a diplexer cable?
A diplexer is a device designed to take two signals from two different cables and intelligently put them on the same cable. A diplexer is the right thing to use when trying to add an antenna signal to an existing cable. There are many different kinds of diplexers.
What is the difference between a duplexer and diplexer?
Simply put, a duplexer separates a transmit and receive path based on signal direction and can be used for same frequency signals, and a diplexers separates signals based on frequency with filters. Their operation is not interchangeable, and a diplexer could not replace a duplexer in common circuits.
How many cable boxes can you have with DIRECTV?
There’s no limit at all to the number of traditional receivers or DVRs you can use. However, you may need to upgrade your dish to support more than 20 tuners if you have installed the most common dish.
