How can you tell the difference between an EN ISO weld symbol and a BS weld symbol?
The main feature that distinguishes weld symbol standards is that for ISO 2553 and BS EN 22553, there is an additional feature of a broken reference line. Any symbol that is used to show a joint or weld type feature on the other side of the arrow line is always placed on a dotted line.
What is typ in welding symbol?
The duplication of identical welding symbols on a drawing may be avoided by designating a single welding symbol as “TYPICAL” (abbreviated as “TYP”) and pointing the arrow to the representative joint. The drafter shall provide additional information to completely identify all applicable joints.
What are the eight elements of a welding symbol?

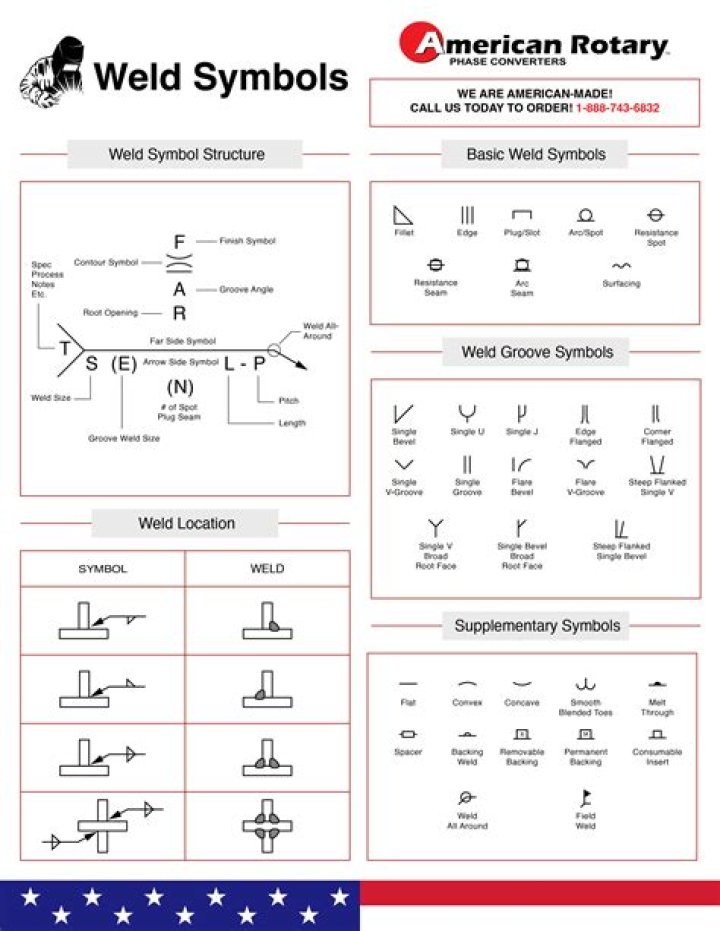

The assembled “welding symbol” consists of the following eight elements, or any of these elements as necessary: reference line, arrow, basic weld symbols, dimensions and other data, supplementary symbols, finish symbols, tail, and specification, process, or other reference.
How many basic weld symbols are there?
The assembled “welding symbol” consists of the following eight elements or any of these elements as necessary: Reference line. Arrow. Basic weld symbols.
What is the difference between weld symbol and welding symbol?
There has been always confusion between a welding symbol and weld symbol. A Welding symbol is different from a weld symbol; which is a graphic character connected to the reference line of a welded symbol specifying the joint geometry. So basically, the weld symbol is a part of the welding symbol.
What is a fillet weld symbol?
The fillet weld symbol is a right triangle placed on the reference line with the perpendicular leg always on the left. The dimension specifying the leg size of a fillet weld is placed to the left of the fillet weld symbol, and on the same side of the reference line.
What is the difference between a weld symbol and a welding symbol?
What is a groove weld symbol?
Like the basic fillet weld symbol, the groove weld symbol consists of a reference line, an arrow line, the tail, Weld Procedure Specification (WPS) information, and the appropriate groove weld symbol. Groove weld symbols can be much more complex than fillet welds symbols.
What is weld pitch symbol?
The length is shown in the welding symbol to the right of the weld symbol. The pitch is the center-to-center distance of each of the weld segments. It is shown to the right of the length on the welding symbol, with a dash between the two.
