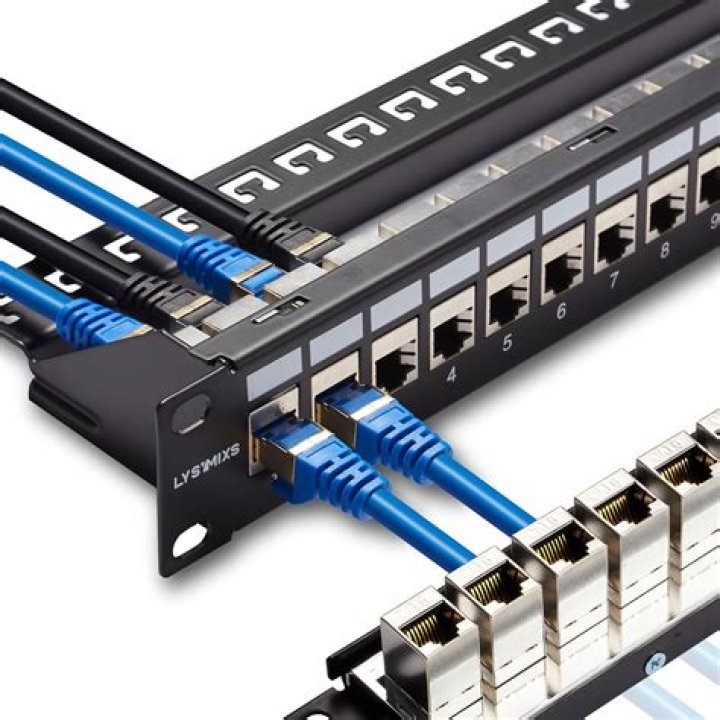

What is the type of cable connect to the patch panel back?
The cat5e patch cable is the basic component to connect end devices to patch panel ports and to connect the ports between two local patch panels.
What cable is preferred for patch panels?
Lowering Cable Cost – Having a patch panel allows you to use shorter cables, which cost less than longer ones. Typically, you can also use inexpensive cat-5 cables to get to the patch panel rather than costly fiber optics.
What connects to a patch panel?
Patch panels bundle multiple network ports together to connect incoming and outgoing lines — including those for local area networks, electronics, electrical systems and communications. When patch panels are part of a LAN, they can connect computers to other computers and to outside lines.
How do you install cable on a patch panel?
Steps for Installing a Patch Panel and Switch
- Determine where the patch panel and switch should be installed.
- Build or purchase pre-terminated patch cords.
- Map out the ports.
- Mount the patch panel and switch.
- Connect the patch panel to the switch.
- Install cable management.
- Label cable.
How do you install patch cables?
What is the purpose of cable i o?
(1) (Input/Output port) An I/O port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
How do you wire a patch panel?
To achieve this kind of wiring, consider the following guide on how to wire a patch panel:
- Buy a patch panel.
- Design a cable map.
- Remove cable jackets from incoming Ethernet cables.
- Remove internal plastic jackets (if any)
- Untwist and spread the cable wires.
- Set your wires to the panel connector.
- Complete your connections.
